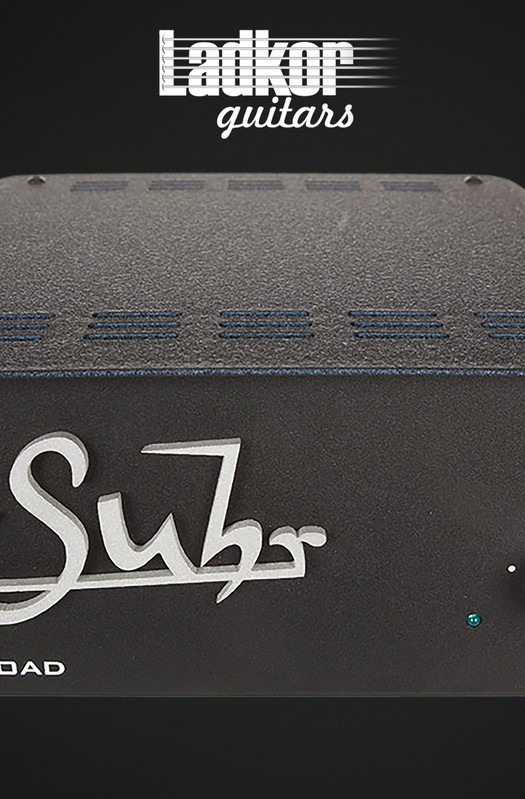

Suhr Reactive Load
The Suhr Reactive Load delivers a simple solution to capture all of the warmth, and dynamics of your sound, without the hassle of miking a speaker cabinet during a live or recorded performance.
The Reactive Load takes the place of your speaker cabinet in your signal chain. It provides an 8Ω load for your tube amplifier (maximum 100 watts), and produces a balanced and unbalanced signal that interfaces with recording devices, effects, and power amplifiers.
FRONT PANEL:
DI LEVEL:
Adjusts the output level of the balanced and unbalanced DI / Line Out outputs (located on the rear panel). DI Level is used to optimize the amount of signal the Reactive Load delivers to your device
BACK PANEL:
DI / LINE OUT:
The Reactive Load is equipped with balanced and unbalanced outputs. Use these to connect the Reactive Load to a recording device, effect, or power amplifier.
INPUT:
From Amp (8 Ohm/100 Watts RMS Max.) Connect the speaker output from your amplifier to the Input on the Reactive Load using a speaker cable.
THRU TO SPEAKER:
(Optional) Use this output to connect your amplifier through to a speaker cabinet.
Specifications:
SKU: 07-RCL-0001
SPEAKER INPUT IMPEDANCE: 8 Ohm
DI / LINE OUT LEVEL: +4 dBu at 7 watts input, maximum level setting
BALANCED LINE OUTPUT IMPEDANCE: Less than 6KΩ
UNBALANCED LINE OUTPUT IMPEDANCE: Less than 6KΩ
MAXIMUM RECOMMENDED INPUT POWER: 100 Watts RMS
ROHS COMPLIANT: Yes
DIMENSIONS: 8.8" (W) x 8.9" (D) x 3.6" (H)
WEIGHT: 6.6lb
